Unique variable duty cycle technology enhances ISP mode flexibility by pulsing, allowing tissues to cool between bursts and reducing burn risk. It stimulates deeper tissues, promoting ATP production, collagen synthesis, and improved blood circulation.

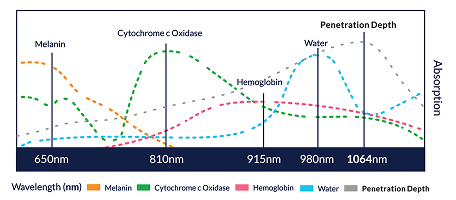

Multi-Wavelength Therapeutic Effects
Each wavelength is specifically selected to target different biological tissues and therapeutic goals. By combining multiple wavelengths, the system delivers optimized energy absorption, enhanced cellular response, improved circulation, and deeper tissue penetration for comprehensive and effective laser therapy.
635nm — Skin/Wound healing
Laser therapy will inhibit bacteria and promote cell growth in the superficial tissue layers, as a result, best in wound healing and scar tissue regulation.
810nm — ATP
Photo absorption will accelerates ATP cellular production for each oxygen-reduction cycle.
915nm — Oxygenation
This treatment targets hemoglobin to enhance oxygen delivery to tissues. By improving circulation, it aids in pain relief. Additionally, it accelerates the healing process, promoting faster recovery.
980nm — Vasodilation
The action of 915nm leads to the extraction of oxygen, but in order to sustain the process's efficiency, new blood needs to be brought in. To achieve this, 980nm is used as a vasodilator, which targets water specifically and creates a temperature gradient in the tissue.
1064nm — Penetration Depth
Better tissue penetration avoiding water for adequate laser dose into deep tissues of an acceleration of cellular activity.

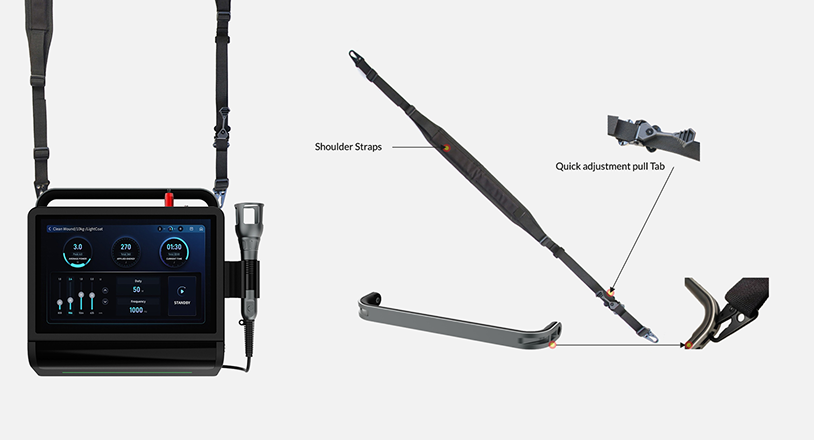

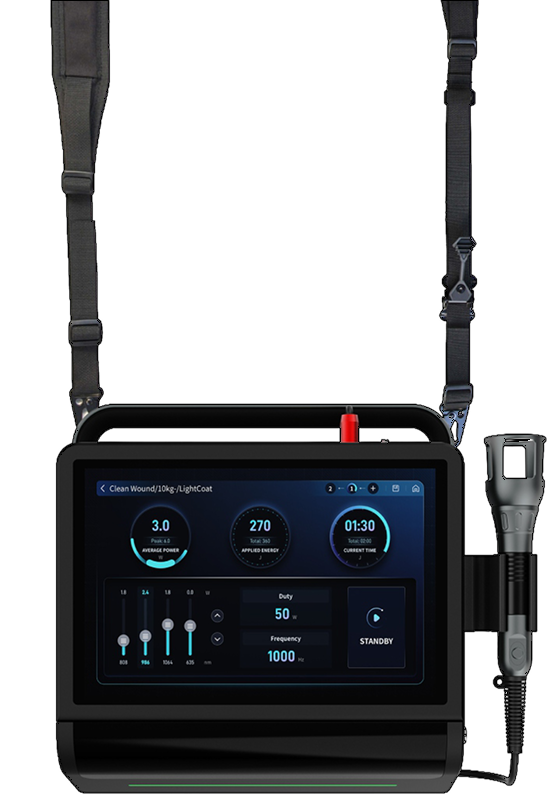

Carrying handle
Carrying handle and shoulder strap for easy transport to various locations and sporting events
The PM5 Series handpiece comes with up to 5 lenses.Multiple sets of lenses work together to meet your different clinical function applications.
Hand Piece with Finger Switch and Large Rolling Ball
30mm big Massage lense
This treatment head is for use in muscular or deep soft tissue
injuries and should be perpendicular to the skin, not approaching
at an angle, it could be pressed for muscular 360° massage.
The Large Ball can be used at power settings up to 30W.
Hand Piece with Finger Switch and Medium Ball
30mm contact lense
This treatment head is for use in muscular or deep soft tissue
injuries in tight spaces or near sensitive areas, this medium ball is
not recommended for use over bone, open wounds, non-intact skin
or areas that would be sensitive to contact. The medium ball head
is recommended for most of laser contact treatment.
The Medium Ball can be used at power settings up to 35W.
Hand Piece with Finger Switch and Small Ball
10mm contact lense
This treatment head is for use in muscular or deep soft tissue
injuries in tight spaces or near sensitive areas, this small ball is not
recommended for use over bone, open wounds, non-intact skin or
areas that would be sensitive to contact.
The Medium Ball can be used at power settings up to 15W.
Hand Piece with Finger Switch and Non-contact Cone
30mm non-contact lense
This treatment head is for general use and applications where no
contact or soft tissue manipulation during treatment is desired.
The Non-contact Cone can be used at power settings up to 90W.
Hand Piece with Finger Switch and Bended Head
5mm acupuncture lense
This treatment head is for laser acupuncture where is not suitable
for perpendicular treating.
The Bended Head can be used at power settings up to 8W.
